Microsoft Access Table Field Lookup Properties

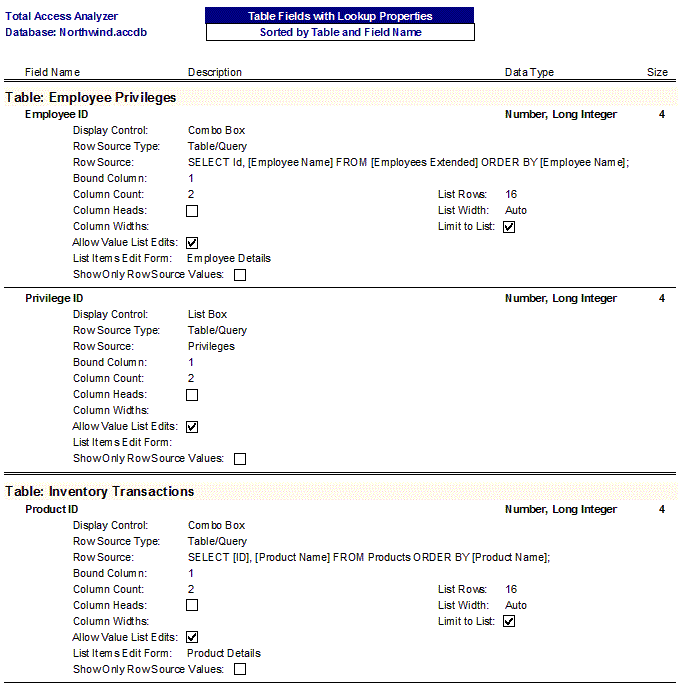

This report shows for each Microsoft Access table's field, the property names and values that appear on the Lookup tab of the table designer when editing the field definition:

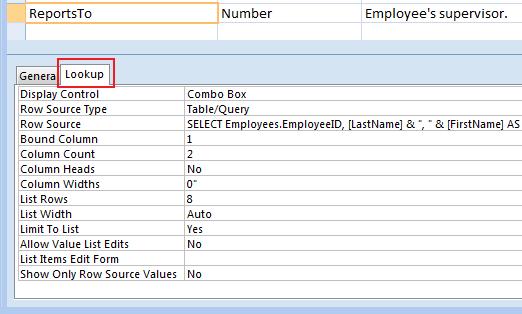

Microsoft Access Table Designer Field Lookup tab

These properties exist if the field is defined as a CheckBox or ComboBox.

Use this report as a quick way to see all the top level properties across all the fields in a table in one place. Easily see the row source, bound column, column count, LimitToList, display settings, and other properties of all the combo boxes on your fields.

This eliminates the need to manually click on each field to first see which ones are combo boxes, and then review the ones you find.

---

Total Access Analyzer Reports for Microsoft Access Tables

Here's the complete list of the Total Access Analyzer reports documenting the tables in your MS Access database. Click on the hyperlinks for more information. Rather than overwhelm you with every report, we've provided a subset of the most interesting reports for you to review. The others show similar data but use different sort orders or filters.

Basic Table Lists

Simple lists to gain a quick understanding of all the tables in your database and their relative size

• Table List, Sorted by Table Name
• Table List, Sorted by Table Type (to see tables by linked data source)
• Table List, Sorted by Number of Records
• Table List with Estimated Sizes, Sorted by Number of Records
• Table List with Estimated Sizes, Sorted by Tables Size
• Table List Details, Sorted by Table Type

Table Properties

• Table Properties, Sorted by Table Name
• Table Properties, Sorted by Property Name

Table Fields

Examine fields lists for each table, or for each field which tables its in, along with their properties

• Table Fields, Sorted by Table Name (Portrait and Landscape versions)
• Table Fields, Sorted by Field Name (Portrait and Landscape versions)
• Table Fields, Sorted by Data Type and Size Summary
• Table Fields, Sorted by Data Type and Size Detail
• Table Field Properties, Sorted by Table Name
• Table Field Properties, Sorted by Field Name
• Table Field Properties, Sorted by Property and Table
• Table Field Properties, Sorted by Property and Field

Table Field General Properties

Look at all the properties of a field the way you would in the table designer or see a property value across all the fields that have them.

• Table Field General Properties
• Table Field Lookup Properties
• Table Field Property Slice DefaultValue
• Table Field Property Slice Format
• Table Field Property Slice InputMask
• Table Field Property Slice Required
• Table Field Property Slice RowSource and Type
• Table Field Property Slice Validation Rule and Text
• Table Fields with Different Types (detects inconsistent field definitions)

Table Indexes

Examine indexes and their fields and properties

• Table Indexes, Sorted by Table Name
• Table Indexes, Sorted by Fields
• Table Index Properties, Sorted by Table Name
• Table Index Properties, Sorted by Property and Table
• Table Index Properties, Sorted by Property and Index

Table Dictionaries

Detailed listing of each table, its properties, indexes, fields, etc.

• Table Dictionary
• Table Dictionary with Field Properties

Table Cross Reference

• Table Cross Reference (where tables are used)
• Field References Sorted by Field Name
• Data Flow Diagram (multi-level cross reference)

---
